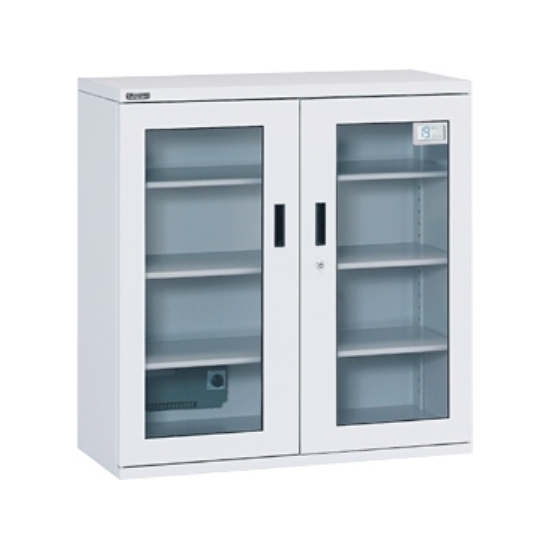

Dry box cabinet ED-268 (20%RH, 252L)

  • ED-268
  • 1
  • Print this page
  • Bookmark
  • 20-30
  • Auto Dry
  • Catalog
Product details

Auto Dry is used for long term storage with less door open and close. Humidity can be adjusted from 20-50%RH. It can be used to store


1. Storage of micro-films and positive/negative films
2. Storage of antiques and ancient documents
3. Storage of electronic devices, PCB and IC packages
    before removing from moisture barrier bag
4. Storage of powdered medicines and water solution
5. Storage of micro-lens and microscope lens etc



Humidity range: 20-50%RH

Humidity control: set by dial, auto operation

External dimensions: W88 x H90 x D40 (cm)

Effective capacity: 252L

Weight: 33kg

Mean power consumption: 6.3w/h = 4.5kw/month

Voltage: Variations in voltage are available

Body, shelves and accessories: Steel body,

glass window, 3 steel shelves (max. Loading:50kg)




TotechToyolivingis the world’s first and largest manufacturer of electronic dry cabinets/ Super dry cabinet/ dry box/ desiccant dry cabinet/ IC storage cabinet/ PCB storage cabinet/ Nitrogen cabinet/ drying cabinet/baking cabinet/ low humidity cabinet/electronic dry cabinet/dehumidifier/ dehumidifying cabinet/ LED storage cabinet/camera dry cabinet/ lab dry cabinet.


It was established in 1974 in Japan. Being an expert in industrial dehumidifying, and a specialist of Moisture Sensitive Devise (MSD), Totech operates globally to supply a diverse customer-based innovative dry storage solutions of desiccant dry cabinets. We design and supply the Super Dry ultra low humidity cabinets, with relative humidity reaching 1%RH, 2%RH, 5%RH and 20%RH.


We're constantly redefining the capability of humidity reduction technology for industries including electronics, digital media, laboratories, medical and optics.


The success of Totech business in the European, American and the Pacific area aspires us to expand the market in mainland China. And in October 2008 Totech Shanghai Co, Ltd. is establised to provide better services to our valued customers.


No.1 Reliability as Dry Cabinet in the world
1) 40 Years experience as Dry Cabinet pioneer maker
For the past 30 years no serious trouble has happened at all.
2) Over 5,000 companies and organizations users with high level of satisfaction
3) The longest term service after‐sales
We can always supply Japanese style service and the term is countless.

More than 30 years as actual result

TOTECH’s SUPER DRY with TOYOLIVING dry unit has been used by many major companies that demand high reliability and performance for Dry Cabinets with precise humidity control ability.
NASA and JAXA had selected SUPER DRY in their laboratory and production line of most advanced aerospace technology.


Flextronics, Intel, Motorola, NASA, Nokia, Siemens,

Sony, Panasonic, Toshiba, Renesas, Hitachi, JAXA.


All Deteriorations are closely related to Humidity!


It's not too exaggerated to say, "All the deteriorations in this world are closely related to Humidity." Every material in semiconductor factories, laboratories, and other markets can have a longer shelf life under suitable humidity

Controlling humidity using SUPER DRY from TOTECH GLOBAL enables you to maintain the quality level of the materials in various cases.



Featured Solutions



SUPER DRY: Quality retention and faulty protection against moisture damage of various SMDs and electronic parts. Moisture-proof storage of PCB boards and mounting parts. Custom order available.

AUTO DRY: Long term storage of materials and spare parts, using its gradual dehumidification up to as low as 30%.



SUPER DRY: Ultra-low storage of samples, specimens, and some living objects.

AUTO DRY: Low storage of samples and specimens, moisture-proof storage of precision measuring equipments, analytical equipments and other tools that are vulnerable to humidity.

SUPERCASE: To carry and protect valuable samples and precision equipments against shock and moisture.



SUPER DRY: For semi permanent storage of large amount of important data and footages.

AUTO DRY: For storage of smaller amount of data and images.



AUTO DRY: Moisture-proof, mold-proof storage of cameras, lenses, and other filming equipments.

SUPERCASE: To carry and protect filming, PC equipments and memory sticks from shock and moisture.



Select from SUPER DRY and AUTO DRY line up according to best suited environment condition needed for storing specific good. Custom order available.



AUTO DRY: Moisture-proof storage of alignment equipments, analytical equipments, precision measuring equipments, transmission equipments and other precision equipments. Corrosion-proof storage of metal equipments, mold proof storage of various devices.


SUPERCASE: Standard storage case for transporting alignment equipments, analytical equipments, precision measuring equipments, transmission equipments, weaponry, etc.


LED CASE: Carry the case around to the areas without electricity. It can illuminate the area for a long period of time when fully charged.

Hemostatic pad: This hemostatic pad is very effective to stop bleeding instantly.

Stab proof vest: This lightweight wear provides high mobility and full protection against knives, glasses and other sharp objects.
