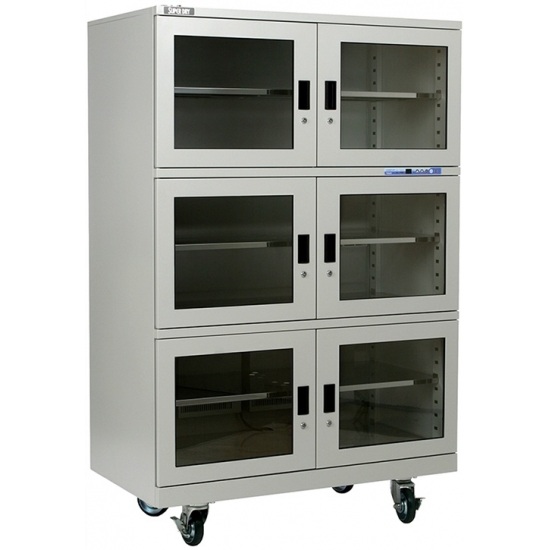

PCB storage dry cabinet HSD-1106-01 (1%RH, 1160L)

Item Num : HSD-1106-01
Print this page : Print this page
Bookmark : Bookmark
Lead Time : 20-30
Brand Name : Totech Super Dry
Product Attachment : Catalog

Product details

Super Dry is an auto-electronic dehumidifying cabinet which provides digital humidity control between 1-50% RH. It is perfect for ultra-low humidity storage, as well as ESD protection for various factory uses.

01 series is equipped with 2 effective dryunits, which can reach the lowest 1%RH. It can completely meet the requirementof IPC(J-STD-033D) and it is suitable for fast dehumidification for conditionswith more door open-close frequency.

Application.

1. Storage of all kinds of Integrated Circuits and Silicon Wafers etc
2. Storage of PDP Inspection Equipments and Liquid Crystal Cleaning Equipments etc
3. Storage of Aerospace related Instruments and Tools
4. Storage of Optional Equipments and Digital Media
5. Storage of Cultural Assets

Features of 01 Series

Advanced ultra-low humidity technology, low energy consumption.
Meets IPC/JEDEC J-STD-033D
Effective dehumidificatin to make sure a short recovery time after door open and close.
Digital control panel for easy operation.
ESD safe design.

Dehumidification principle

1.The drying agent absorbs the moisture inside the cabinet.
2.The absorption process will stop once the setting humidity level is achieved.
3.The absorbed moisture will be heated and discharged as vapor

Specifications:

1. Humidity Range: 1%RH

2. Sensor precision: ±2%RH, +/-1°C

3. External dimensions: (W x H x D) 1200 x 1840 x 580 mm

4. Internal dimensions: (W x H x D) 1190 x 1560 x 630 mm

5. Weight: 167 kg

6. Volume: 1160 L

7. Shelves (W x D): 5 pcs, 1157 x 490 mm, adjustable (ESD safe steel)

8. Max weight on shelf: 100 kg

9. Structure: 1.2mm Steel, ESD safe

10. Cabinet color: Gray

11. Door: 6 pcs, with handles, airtight magnetic sealers.

12. ESD grounding wire: 1M Ω

13. Voltage: 220 V AC (110 V AC optional)

14. Power consumption: Ave. 56 W/h

15. Castors: 4pcs, 2 of them with brakes

16. Humidity/Door open alarm buzzer

17. Wrist strap connection

Options:

1. Humidity alarm light

Alarm light flashes and sounds when its internal humidity exceeds set value

2. Extra shelf

Greatly increase the usable space inside Super Dry

3. Nitrogen auto purge system (Model AN2-03)

Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set on digital control panel.

4. Independent Nitrogen purge system (Model TN2-02)

Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set the buttons on N2 purge system itself

5. Nitrogen valve (Model: HN2-01)

Simple N2 flow meter, 0-25L/min adjustable

6. SMD single rack (stainless steel)

Suitable for storage of components on tape and reel, can pull out on rail

7. SMD double rack (stainless steel)

Suitable for storage of components on tape and reel, can pull out on rail

8. Adjustable legs

Available for effective stabilization

9. Data logger with software (model 174H)

Data logging humidity and temperature, can read and output data by software with a PC

Unloaded Test of 01 series

No.1 Reliability as Dry Cabinet in the world
1) 40 Years experience as Dry Cabinet pioneer maker
For the past 30 years no serious trouble has happened at all.
2) Over 5,000 companies and organizations users with high level of satisfaction
3) The longest term service after‐sales
We can always supply Japanese style service and the term is countless.

More than 30 years as actual result

Electronics
TOTECH’s SUPER DRY with TOYOLIVING dry unit has been used by many major companies that demand high reliability and performance for Dry Cabinets with precise humidity control ability.
NASA and JAXA had selected SUPER DRY in their laboratory and production line of most advanced aerospace technology.

Flextronics, Intel, Motorola, NASA, Nokia, Siemens,

Sony, Panasonic, Toshiba, Renesas, Hitachi, JAXA.

All Deteriorations are closely related to Humidity!

It's not too exaggerated to say, "All the deteriorations in this world are closely related to Humidity." Every material in semiconductor factories, laboratories, and other markets can have a longer shelf life under suitable humidity

Controlling humidity using SUPER DRY from TOTECH GLOBAL enables you to maintain the quality level of the materials in various cases.

Featured Solutions

SEMICONDUCTOR MARKET

SUPER DRY: Quality retention and faulty protection against moisture damage of various SMDs and electronic parts. Moisture-proof storage of PCB boards and mounting parts. Custom order available.

AUTO DRY: Long term storage of materials and spare parts, using its gradual dehumidification up to as low as 30%.

LABORATORY MARKET

SUPER DRY: Ultra-low storage of samples, specimens, and some living objects.

AUTO DRY: Low storage of samples and specimens, moisture-proof storage of precision measuring equipments, analytical equipments and other tools that are vulnerable to humidity.

SUPERCASE: To carry and protect valuable samples and precision equipments against shock and moisture.

DIGITAL MEDIA AND FILM, PHOTO MARKET

SUPER DRY: For semi permanent storage of large amount of important data and footages.

AUTO DRY: For storage of smaller amount of data and images.

CAMERA & LENS MARKET

AUTO DRY: Moisture-proof, mold-proof storage of cameras, lenses, and other filming equipments.

SUPERCASE: To carry and protect filming, PC equipments and memory sticks from shock and moisture.

CULTURAL ASSETS, ANTIQUES, MUSICAL INSTRUMENT MARKET

Select from SUPER DRY and AUTO DRY line up according to best suited environment condition needed for storing specific good. Custom order available.

POLICE, FIRST AID, LIFESAVING, DEFENSE ARMY MARKET

AUTO DRY: Moisture-proof storage of alignment equipments, analytical equipments, precision measuring equipments, transmission equipments and other precision equipments. Corrosion-proof storage of metal equipments, mold proof storage of various devices.

SUPERCASE: Standard storage case for transporting alignment equipments, analytical equipments, precision measuring equipments, transmission equipments, weaponry, etc.

LED CASE: Carry the case around to the areas without electricity. It can illuminate the area for a long period of time when fully charged.

Hemostatic pad: This hemostatic pad is very effective to stop bleeding instantly.

Stab proof vest: This lightweight wear provides high mobility and full protection against knives, glasses and other sharp objects.
