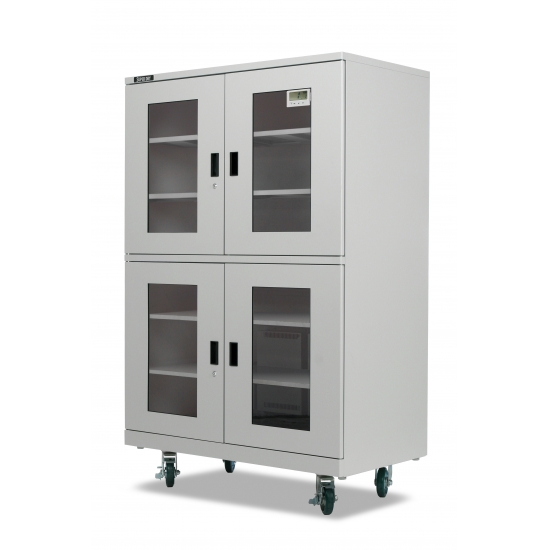

LED storage dry cabinet CSD-1104-20 (20%RH, 1160L)

  • CSD-1104-20
  • 1
  • Print this page
  • Bookmark
  • 20-30
  • Totech
  • Catalog
Product details

Totech (Toyo Living) is the creator of world’s first Automatic Drying System invented in 1973.

Totech Super Dry cabinets use the high quality and highly reliable Toyo Living engine and has been sold over 700,000 units and used in over 10,000 companies around the world. We also supply various kinds of custom-build cabinet to best suit our client’s need.



1 Function

Totech Auto Dry CSD-1104-20 is engineered for long-term storage of 20%~50%RH.

The circulation of air in the cabinet is regulated by an internal fan.

Hygrometer is battery operated.



2.Features

2.1 Modular design: Totech Auto Dry is modularly designed dry cabinet. The main modules include dry unit, shelves, castors, hygrometer. All of the modules can be replaced easily. Totech dry cabinet can be used as long as the cabinet structure is in good condition. Most of our customers can use the Totech dry cabinets for more than 10 years without any problem.



2.2 Convenient Operation : CSD-1104-20 works automatically and continuously, and it is “plug and play” cabinet. Humidity is shown on hygrometer.



2.3 Maintenance free design: Totech dry cabinet works by dry units. An interlocked fan causes the air to circulate through the dry unit, while passing through the dry unit moisture in the air is absorbed by the zeolite desiccant. During periodic regenerating of the zeolite desiccant by heating, the absorbed humidity is evaporated and exhausted through the external shutters of the dry unit. The process is physical, and no extra maintenance at all.



2.4 Lockable doors: Every door can be locked separately with a key


3. Applications
Auto Dry maintains preset internal humidity levels from 20~50% RH and is ideal for moisture proof storage applications for such items as:
· Micro-films and positive/negative films
· Antiques and ancient documents
· Electronic devices, PCBs and IC packages before removing from moisture barrier bags
· Powered medicines
· Micro-lens and microscope lens, etc.



4. Specifications:

4.1 Humidity Range: 20% (20%~50%RH adjustable by dial)

4.2 Display of hygrometer: ±5%RH

4.3 External dimensions: (W x H x D) 1200 x 1840 x 670 mm

4.4 Internal dimensions: (W x H x D) 1190 x 1560 x 620 mm

4.5 Weight: 155 kg

4.6 Capacity: 1160 L

4.7 Shelves (W x D): 5 pcs, 1157 x 490 mm, adjustable

4.8 Max weight on shelf: 100 kg

4.9 Structure: 1.2mm steel

4.10 Cabinet color: Gray

4.11 Door: 4 pcs, with handles, airtight magnetic sealers and glass.

4.12 Voltage: 220 V AC (110 V AC optional)

4.13 Power consumption: Ave. 30.5W/h

4.14 Castors: 4pcs, 2 of them with brakes

4.15 Performance of CSD-1104-20  <Unloaded Test>





5. Options



5.1Extra shelf

Greatly increase the usable space inside dry cabinet



5.2 Independent Nitrogen purge system (Model TN2-02)

Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set the buttons on N2 purge system itself



5.3 Nitrogen valve (Model: HN2-01)

Simple N2 flow meter, 0-25L/min adjustable



5.4 SMD single rack (stainless steel)

Suitable for storage of components on tape and reel, can pull out on rail



5.5 SMD double rack (stainless steel)

Suitable for storage of components on tape and reel, can pull out on rail



5.6 Adjustable legs

Available for effective stabilization



5.7 Data logger with software (model MR6662)

Data logging humidity and temperature, can read and output data by software with a PC



5.8 ESD safe function

ESD safe painting on cabinet body and shelves



5.9 Wrist strap connection

Allows grounding while handling ESD sensitive materials







No.1 Reliability as Dry Cabinet in the world
1) 40 Years experience as Dry Cabinet pioneer maker
For the past 30 years no serious trouble has happened at all.
2) Over 5,000 companies and organizations users with high level of satisfaction
3) The longest term service after‐sales
We can always supply Japanese style service and the term is countless.

More than 30 years as actual result


Electronics
TOTECH’s SUPER DRY with TOYOLIVING dry unit has been used by many major companies that demand high reliability and performance for Dry Cabinets with precise humidity control ability.
NASA and JAXA had selected SUPER DRY in their laboratory and production line of most advanced aerospace technology.



Flextronics, Intel, Motorola, NASA, Nokia, Siemens,

Sony, Panasonic, Toshiba, Renesas, Hitachi, JAXA.



All Deteriorations are closely related to Humidity!



It's not too exaggerated to say, "All the deteriorations in this world are closely related to Humidity." Every material in semiconductor factories, laboratories, and other markets can have a longer shelf life under suitable humidity

Controlling humidity using SUPER DRY from TOTECH GLOBAL enables you to maintain the quality level of the materials in various cases.





Featured Solutions

SEMICONDUCTOR MARKET



SUPER DRY: Quality retention and faulty protection against moisture damage of various SMDs and electronic parts. Moisture-proof storage of PCB boards and mounting parts. Custom order available.

AUTO DRY: Long term storage of materials and spare parts, using its gradual dehumidification up to as low as 30%.



LABORATORY MARKET

SUPER DRY: Ultra-low storage of samples, specimens, and some living objects.

AUTO DRY: Low storage of samples and specimens, moisture-proof storage of precision measuring equipments, analytical equipments and other tools that are vulnerable to humidity.

SUPERCASE: To carry and protect valuable samples and precision equipments against shock and moisture.



DIGITAL MEDIA AND FILM, PHOTO MARKET

SUPER DRY: For semi permanent storage of large amount of important data and footages.

AUTO DRY: For storage of smaller amount of data and images.



CAMERA & LENS MARKET

AUTO DRY: Moisture-proof, mold-proof storage of cameras, lenses, and other filming equipments.

SUPERCASE: To carry and protect filming, PC equipments and memory sticks from shock and moisture.



CULTURAL ASSETS, ANTIQUES, MUSICAL INSTRUMENT MARKET

Select from SUPER DRY and AUTO DRY line up according to best suited environment condition needed for storing specific good. Custom order available.



POLICE, FIRST AID, LIFESAVING, DEFENSE ARMY MARKET

AUTO DRY: Moisture-proof storage of alignment equipments, analytical equipments, precision measuring equipments, transmission equipments and other precision equipments. Corrosion-proof storage of metal equipments, mold proof storage of various devices.



SUPERCASE: Standard storage case for transporting alignment equipments, analytical equipments, precision measuring equipments, transmission equipments, weaponry, etc.



LED CASE: Carry the case around to the areas without electricity. It can illuminate the area for a long period of time when fully charged.

Hemostatic pad: This hemostatic pad is very effective to stop bleeding instantly.

Stab proof vest: This lightweight wear provides high mobility and full protection against knives, glasses and other sharp objects.
