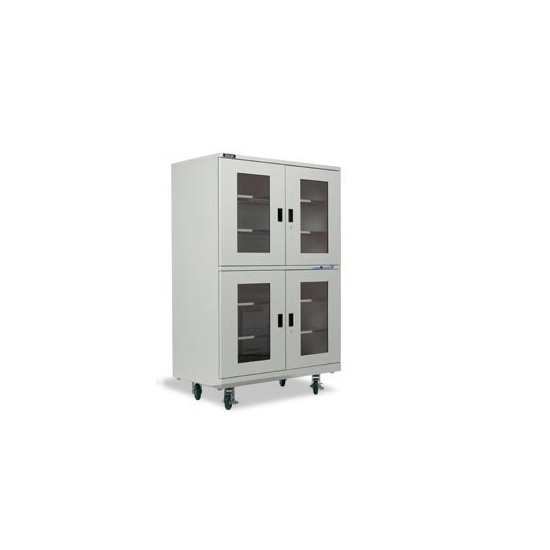

Air clean dry cabinet SDF-1104-01
- SDC-1204-01
- 1 8000
- Print this page
- Bookmark
- 20-30
- Totech Super Dry
We accept customized cabinets with special requirement, such as large capacity, special dimensions, special functions etc.
2) Special function
Super Dry Cabinet model SDC-1204-01 is with HEPA filter to make air clean class 100, most suitable for clean rooms, medical labs, etc.
Humidity range:1-50%RH
Air cleanliness: Class 100 with HEPA filter
External dimensions: W1200 x H1840 x D960 (mm)
Internal dimensions: W1190 x H1560 x D910 (mm)
Effective capacity: 1160 L
Weight: 193kg
Mean power consumption:56W/hr=40.4kW/Month
Rated Voltage: Variations in voltage are available
Materials: Steel body, conductive glass windows
Shelves and accessories: 5 stainless steel adjustable shelves (100kg loading capacity)
Humidity control: Dogital cpntrol panel by fixed point
Options:
Humidity alrm light
Humidity alarm buzzer
Door alarm buzzer
N2 purging system
Extra shelf
Data logger
Humidity and temperature monitoring system
