Product details

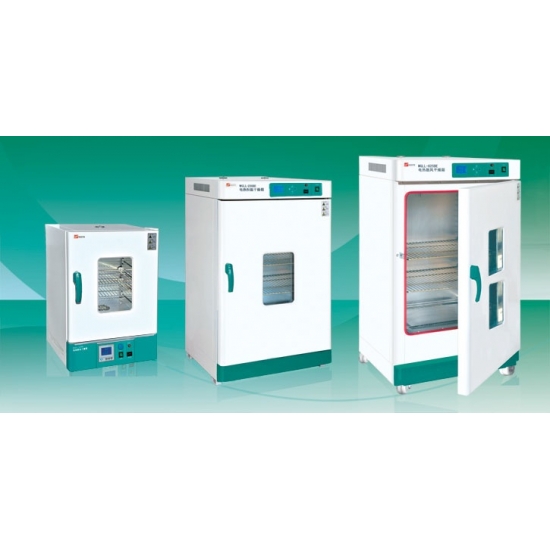

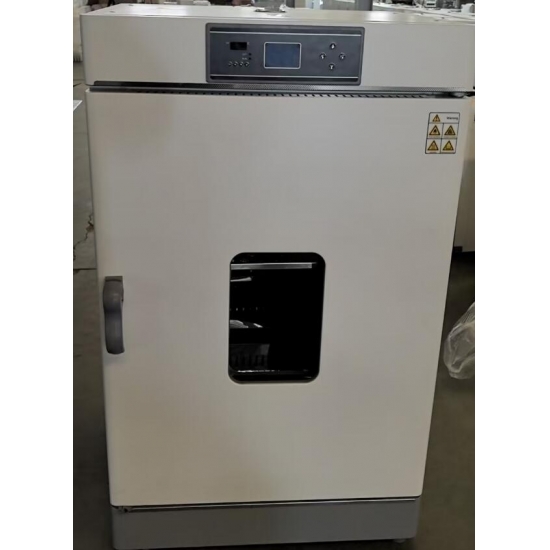

WGLL Electro-thermal Blast Drying Oven

Uses：

WGLL Drying Oven is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.
Characteristics：
1. Vertical design; cold rolling steel electrostatic spraying exterior.
2. Favin stainless steel inner chamber; foursquare semicircle transition; flexible positioning and airduct lateral plate and bottom heater covering are easy assembly and disassembly for convenient cleaning.
3. Well coordinated bottom air blower and heater and vertical hot air circulation ensure temperature evenness.
4. Adjustable fan speed; blowing rate is adjustable to ensure temperature evenness and prevent powder samples blowing away.
5. LED with function of timing and over-temperature protection.
6. Independent temperature safety device; auto break off when over temperature limit, auto power switch to maintain temperature when main controller fails to work; Double protection ensures experiment run safely and no accident would happen.
7. Optional RS-485 interface for network connection.
8. Door heat insulation well and with wide double-glass observation window, adjustable air-tight buckle lock and silicon rubber seal, which provide good sealability and efficiently prevent heat loss.
Notes: WGLL-230BE and WGL-625BE have no function of fan speed adjustment.
WGLL-625 features top blowing.
Optional accessories:
a. Desk printer

b. Multi-staged temperature controller

c. Optional long-distance control system

Main Technical Parameters：

Model voltage
（V）
Temperature
variation
（℃）
Tem.fluctuation
（℃）
Tem.distingu-
ishability（℃） Ambient tem.
（℃）
Heating power
（kw）

WGLL-30BE 220V/50HZ RT+10-300℃ ±1.0℃ 0.1℃ +5-40℃ 0.8

WGLL-45BE 1.2

WGLL-65BE 1.6

WGLL-125BE 2.3

WGLL-230BE 3

WGLL-625BE
380V/50HZ 5

Model Interior
dimensions
W×D×H(mm) Exterior
dimensions
W×D×H(mm) Packaging
dimensions
W×D×H(mm) Load per rack Gross/net
weight(kg)
Timing
range

WGLL-30BE 310×310×310 460×510×695 550×570×765 15/kg 2 for stand-ard configuration 33/37

1-9999min

WGLL-45BE 350×350×350 500×550×735 620×585×800 37/43

WGLL-65BE 400×360×450 550×550×840 640×640×905 44/49

WGLL-125BE 500×450×550 636×680×915 730×720×1000 60/66

WGLL-230BE 600×500×750 730×670×1220 900×800×1350 25/kg 2 for standard configuration 94/120

WGLL-625BE
660×760×1250 895×925×1830 1000×1080×2000 25/kg 3 for standard configurati

Previous:IPC standard dry cabinet SD-1104-02 (2%RH, 1160L)
Next: Acrylic Nitrogen Cabinet ESDA-200S (3%RH)

Model	voltage （V）	Temperature variation （℃）	Tem.fluctuation （℃）	Tem.distingu- ishability（℃）	Ambient tem. （℃）	Heating power （kw）
WGLL-30BE	220V/50HZ	RT+10-300℃	±1.0℃	0.1℃	+5-40℃	0.8
WGLL-45BE						1.2
WGLL-65BE						1.6
WGLL-125BE						2.3
WGLL-230BE						3
WGLL-625BE	380V/50HZ					5

Model	Interior dimensions W×D×H(mm)	Exterior dimensions W×D×H(mm)	Packaging dimensions W×D×H(mm)	Load per rack	Gross/net weight(kg)	Timing range
WGLL-30BE	310×310×310	460×510×695	550×570×765	15/kg 2 for stand-ard configuration	33/37	1-9999min
WGLL-45BE	350×350×350	500×550×735	620×585×800		37/43
WGLL-65BE	400×360×450	550×550×840	640×640×905		44/49
WGLL-125BE	500×450×550	636×680×915	730×720×1000		60/66
WGLL-230BE	600×500×750	730×670×1220	900×800×1350	25/kg 2 for standard configuration	94/120
WGLL-625BE	660×760×1250	895×925×1830	1000×1080×2000	25/kg 3 for standard configurati
