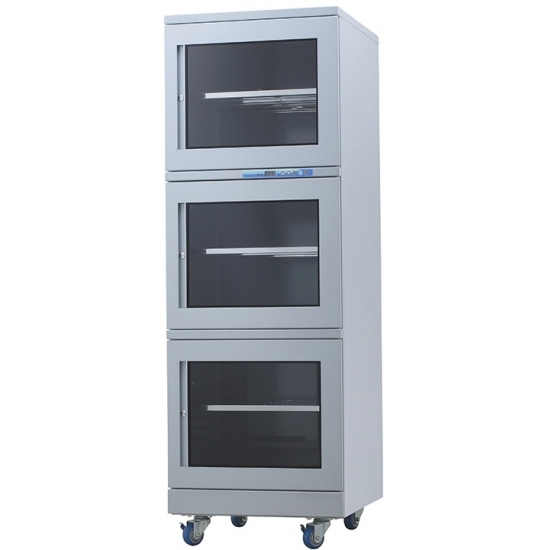

Super Dry cabinet FSD-680-01 (0.5%RH, 580L)
- FSD-680-01
- 1
- Print this page
- Bookmark
- 20-30
- Totech Super Dry
- Catalog
Product details
Mostly recommed for SMT production Line!
Ultra low humidity, Super fast dehumidification.
1, Newly developed super fast dehumidifying.2, Keep constant <0.5%RH, recovery to 5%RH within 5 mins.
3, Installed Japnese patent dry units.
4, Low power comsumption.
1, Installed Switzerland made SENSIRION sensor, with display range 0~99%RH.
2, To read humidity&temperature value, set humidity alarm and calibrate sensor on digital panel.
3, Cabinet body is made of 1.2mm SPCC, with trengthened structure and excellent air tightness.
4, 360°rotary castors with brakes, ESD safe castors optional.
5, Shelf is with loading capacity 100kg, with height adjustable.
6, The door is with 4mm windows.
7, Cabinet surface resistance 106~109 Ω, cabinet is with 1MΩ grounding wire, compling to IEC61340-5-1.
8, The storage efficacy satisfies and exceeds the IPC/JEDECJ-STD-033D standard.
Specifications:
Model:FSD-680-01
FSD Series: <0.5%RH ultra low humidity, super fast dehumidification
External Size: W1200*D670*H1840mm
Internal Size: W589*D490*H1545mm
Min. Humidity: 1%RH
Humidity Accuracy: ±2%RH
Surface Resistivity: 106~109 Ω
Volume（L）: 580L
Power Consumption: 103.4W/hr
Shelves (Adjustable) : 5PCS
Weight（kg） : 132Kgs
Max. Weight On Shelf(Kg): 100Kgs
Color : Gray
Next: LED storage dry cabinet SDU-252-00 (0.5%RH, 252L)
