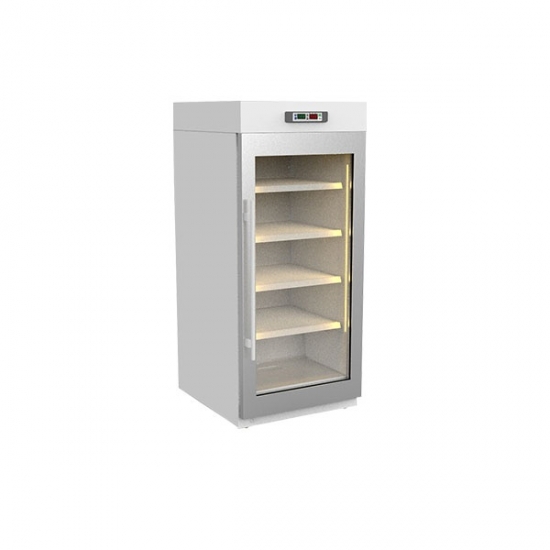

Low Temperature Dry Cabinet HSDC-200 (1-50%RH ,2-20℃,200L)

Low Temperature Dry Cabinet HSDC-200 (1-50%RH ,2-20℃,200L)

Used to store important items, such as Frozen dried powder.

Features：

Safety lock ensures safety of stored items.

Compact glass and low humidity prevent condensation, allow clear observation.

Adjustable shelves w/card slots for easy item retrieval.

LED lighting is bright and energy-saving.

Forced evaporation collects condensate, then evaporates naturally.

Aluminum interior is clean and hygienic.

Modular refrigeration and dehumidification for easy maintenance.

German-imported hinges, embedded design, save space.

Specifications:

1.Temperature Range:2-20℃(adjustable)

2.Humidity:1-50%RH (adjustable)

3.Temperature display accuracy:0.1℃

4.Temperature fluctation range:±2℃

5.Humidity measurement accuracy:±2%RH

6.Noise:≤45dBA

7.External dimensions: (W x H x D) 580x 1335 x 645 mm

8. Internal dimensions: (W x H x D) 480 x 875 x 475 mm

9. Weight: 65kg

10. Volume:200L

11.Shelves：4(Optional)

Temperature controlontrol

It adopts microcomputer control system and digital temperature display to ensure accuracy and stability.Precise electronic temperature control with an accuracy of 0.1°C.A standard USB interface is provided for record downloading, and a maximum of 16,000 sets of temperature data can be recorded.

Humidity control

Intelligent dry unit, fast and efficient; Precise control: Equipped with imported precision humidity sensor with accuracy ±2%RH; set and display on digital panel, simple and convenient operation; Intelligent constant humidity: adopts automatic intelligent control method and has humidity stabilization function.

Cooling System

The forced air cooling cycle can maintain the stability and uniformity of the temperature inside the box, and can quickly restore the temperature after opening the door; no defrosting is required, thus ensuring a constant temperature inside the box to a greater extent; insulation and insulation The layer thickness is 50-60mm polyurethane foam and has built-in air-gel insulation felt for better thermal insulation.

Security

The magnetic seal door is equipped with a Hettich dumpling chain imported from Germany, which automatically closes and presses for better sealing, ensuring better refrigeration performance and operational reliability of the storage cabinet. the controller is equipped with a rechargeable backup battery, which is powered on by the main power supply When the power is off, it can display main information such as alarm and box internal temperature. Therefore, after the blackout appears, the display will flash and display the fault code until the fault is eliminated. Built-in mechanical lock to ensure the safety of stored items
